Oil coolers (OOC range)

The OOC range offers high-performance quality coolers manufactured from aluminium alloy components and brazed into a one-piece assembly. This material and method of construction provides an astounding performance unit of high-integrity and hence long service life.

Coolers are available to suit a wide variety of applications while multiple options for height, width, and depth allow efficient off-the-shelf solutions.

OOC oil coolers are ideal for a range of applications, including engine oil coolers, transmission oil coolers, hydraulic systems, compressed air systems, transformers and fuel coolers.

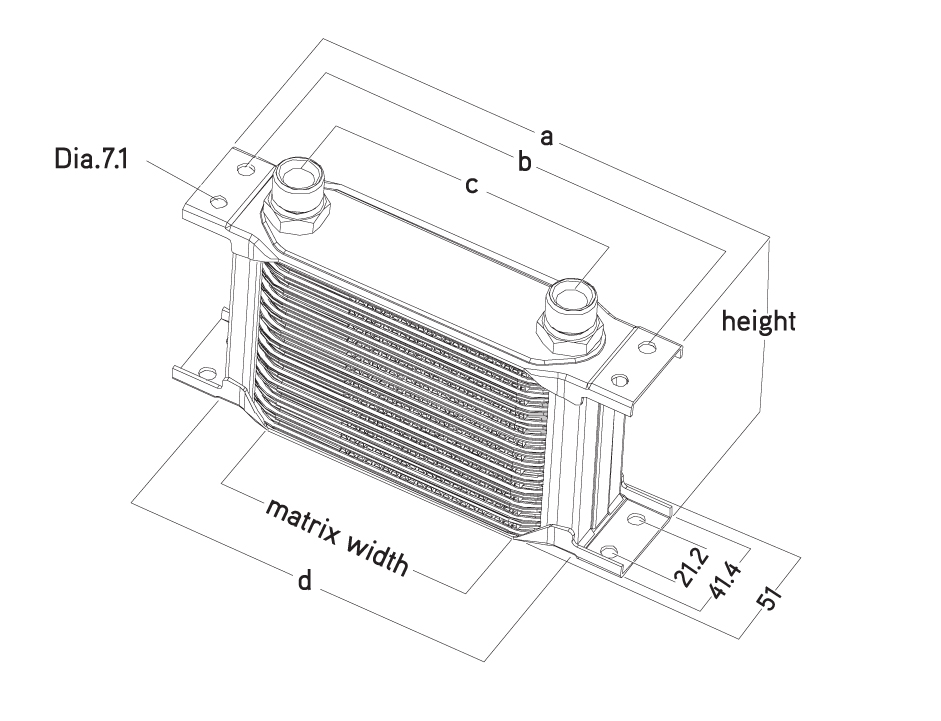

Model	Dimensions	Rows	7	10	13	16	19	25	34	44	50	Unit
115	a-210	Height	53	77	100	124	147	194	265	344	390	mm
	b-188	Weight	0.32	0.42	0.52	0.63	0.73	0.94	1.26	1.61	1.82	kg
	c-128	Capacity	0.09	0.12	0.16	0.20	0.24	0.31	0.42	0.55	0.62	liters
	d-175	Face Area	0.006	0.009	0.012	0.014	0.017	0.022	0.030	0.040	0.045	m2
235	a-330	Height	53	77	100	124	147	194	265	344	390	mm
	b-308	Weight	0.53	0.71	0.88	1.06	1.24	1.60	2.14	2.73	3.09	kg
	c-248	Capacity	0.14	0.20	0.26	0.32	0.38	0.50	0.68	0.88	1.00	liters
	d-295	Face Area	0.012	0.018	0.024	0.029	0.035	0.046	0.062	0.081	0.092	m2

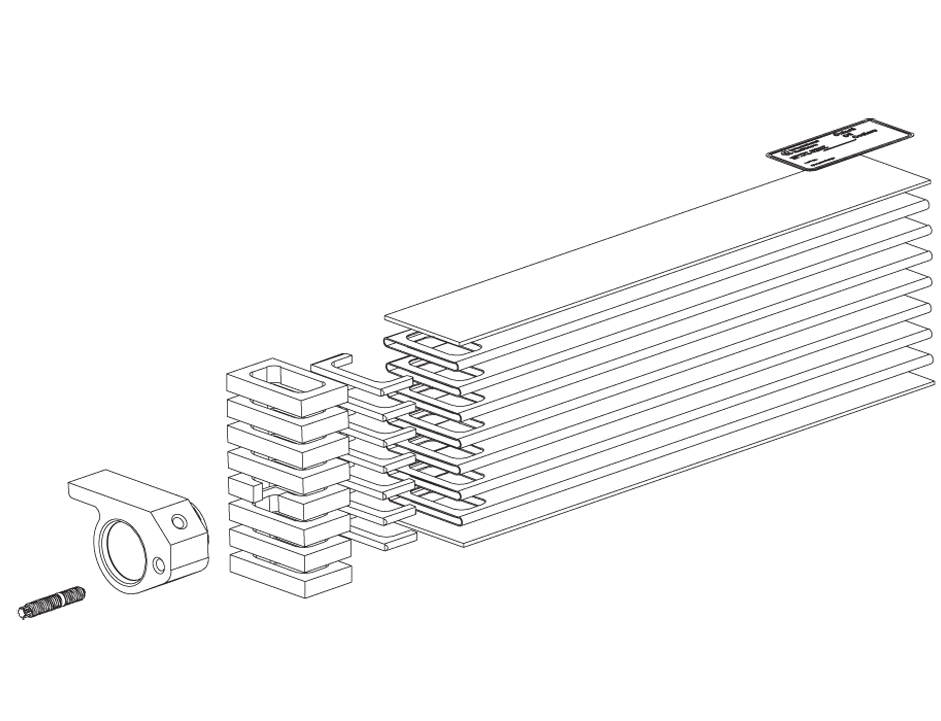

Intercalary coolers

• A cooler offering very high performance for low to medium pressure applications
• High thermal efficiency, low pressure drop due to internal turbulators and louvred air fins
• Long-life – durable all-brazed aluminium construction
• Modular construction
• Maximum working pressure 12 bar (175 psi)
• Corrosion-protective coatings
• Full range of connections and other ancillaries available

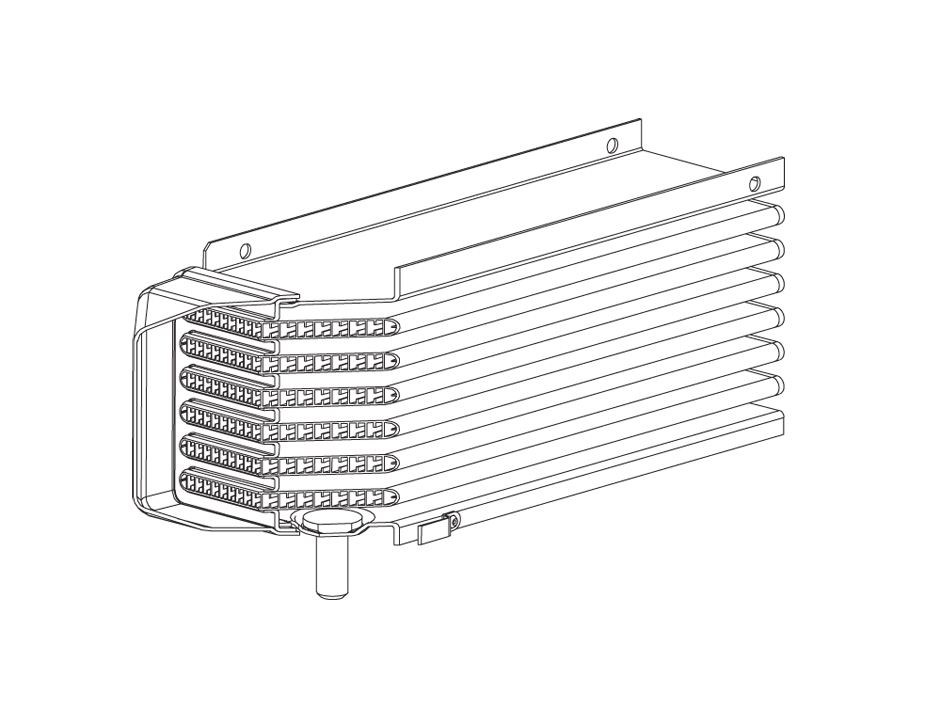

100 Series coolers

• A high performance cooler for medium pressure applications
• Long life durable all-brazed aluminium construction
• Maximum working pressure 25 bar (360 psi)
• Corrosion-protective coatings
• Available in a variety of matrix sizes with horizontal or vertical porting configurations
• Two standard depths: 28mm and 45mm
• Multiple oil passes possible
• Tailored to specific applications

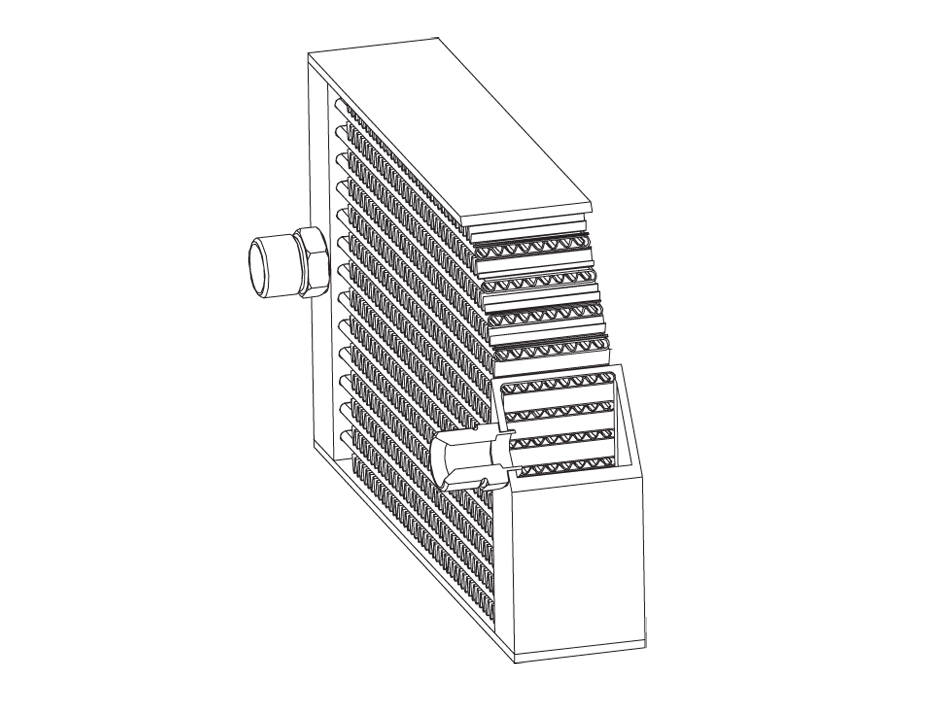

200 Series coolers

• A high performance cooler for high pressure applications
• Long-life durable all-brazed aluminium construction
• Maximum working pressure 35 bar (500 psi)
• Corrosion-protective coatings
• Full range header tank and port configurations to suit specific applications

300 Series coolers
